3 Axle Blue Lowbed Semi Trailer
Our 3 Axle Blue Lowbed Semi Trailer is engineered for the rigorous demands of heavy machinery transportation. With a robust loading capacity ranging from 40 to 80 tons, this 3 Axle Blue Lowbed Semi Trailer is the ideal choice for moving excavators, bulldozers, loaders, and other oversized heavy equipment across job sites, construction projects, and mining operations. Whether you are transporting a 40-ton tracked excavator or a 75-ton bulldozer, this trailer adapts effortlessly to your payload requirements, making it one of the most versatile heavy-haul solutions available in the market today.
Manufactured with high-strength steel, the 3 Axle Blue Lowbed Semi Trailer features overall dimensions of 13,000mm in length, 3,000mm in width, and a deck height of just 1,750mm. This low-profile design ensures a low center of gravity, which significantly enhances stability during high-speed highway transit and reduces the risk of tipping when navigating sharp turns or uneven terrain. The platform length spans from 9,000mm to 10,000mm, providing ample space to accommodate various tracked and wheeled vehicles, including large-loaders, road rollers, and crawler cranes. The blue finish not only delivers a professional and distinctive appearance but also incorporates anti-corrosion coating for long-lasting durability in harsh outdoor environments.
Left Side View

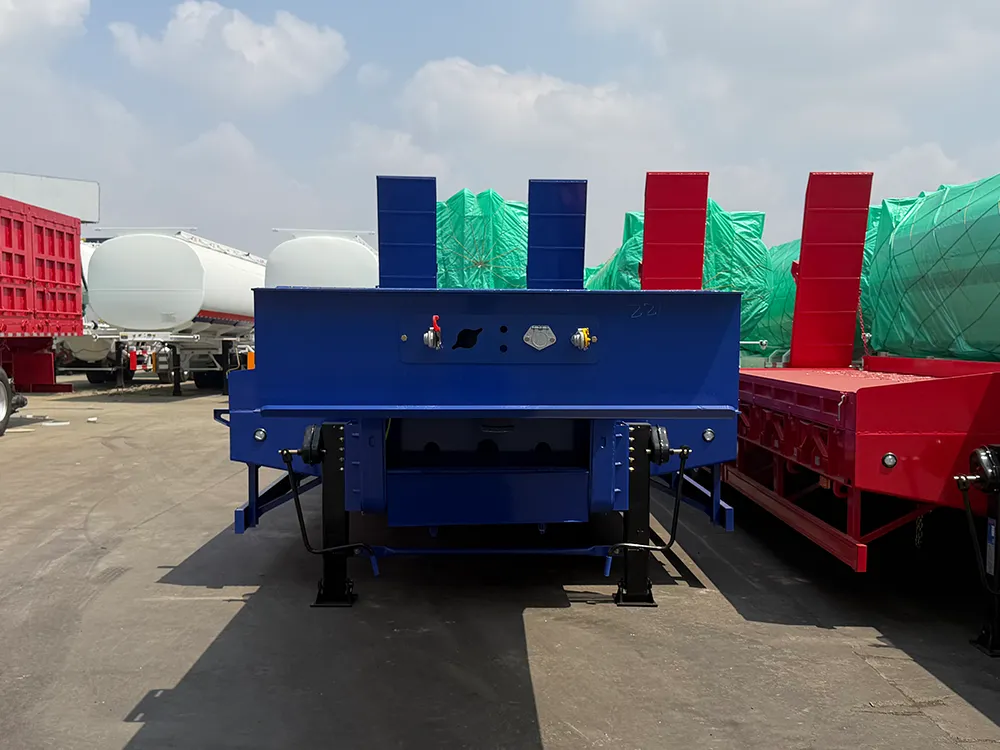

Front View

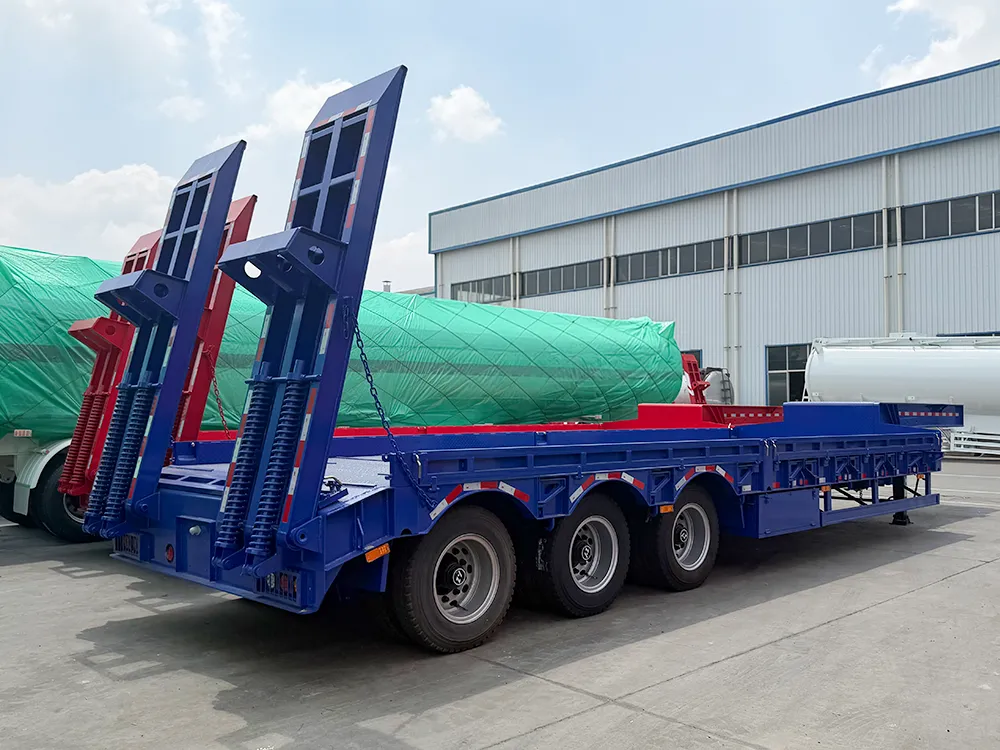

Rear Three-Quarter View

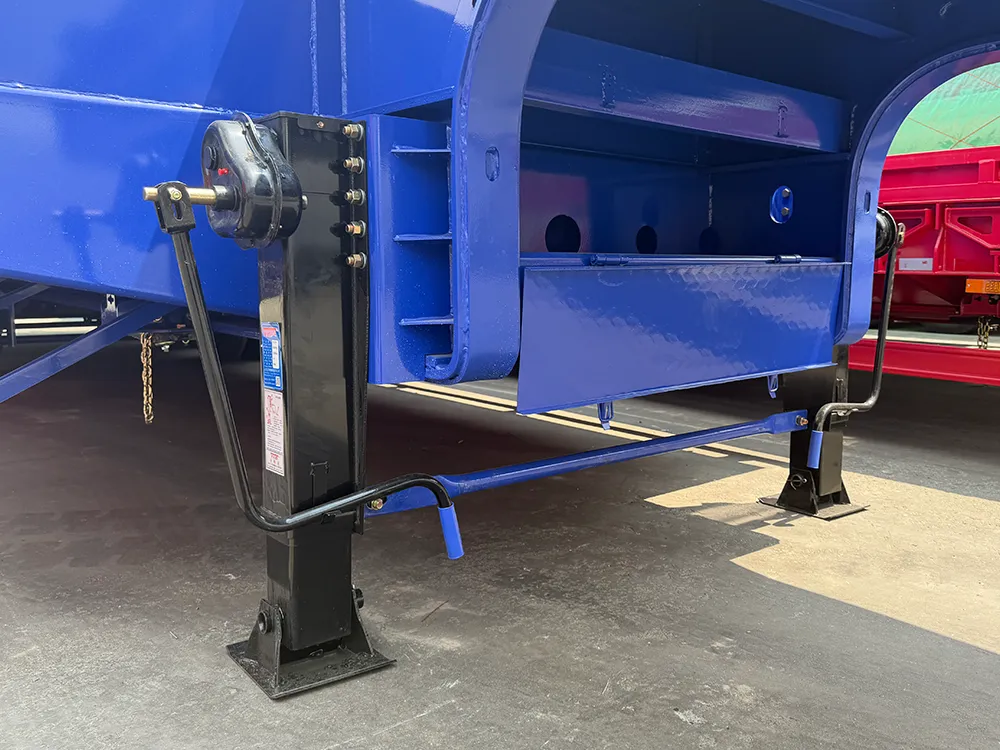

Landing Gear Detail

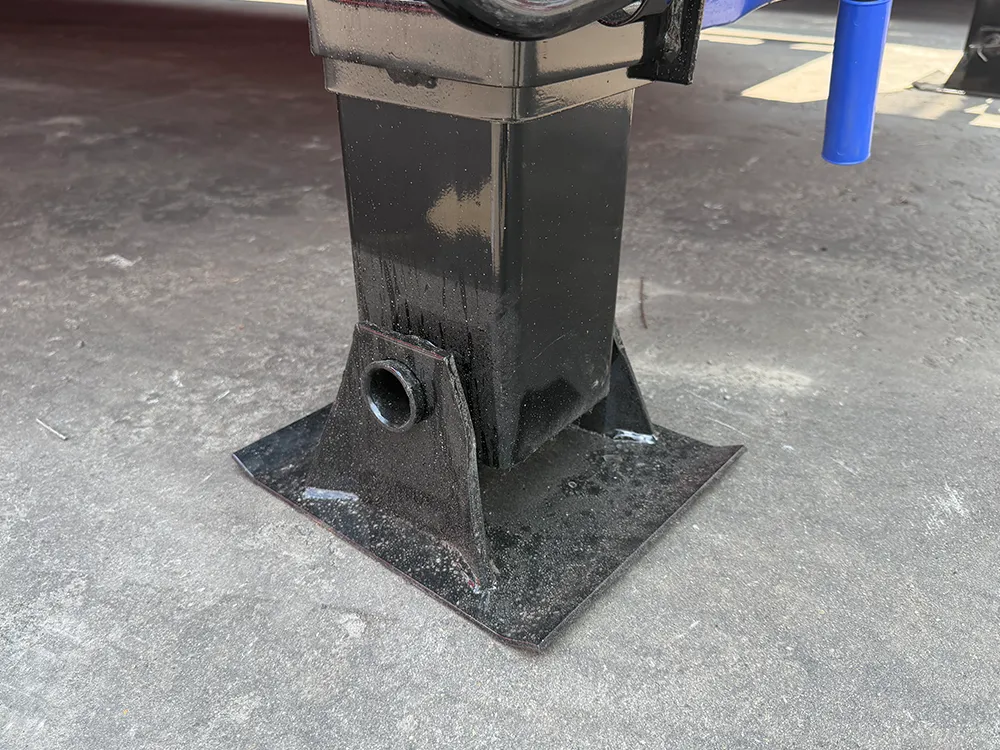

Landing Gear Foot Detail

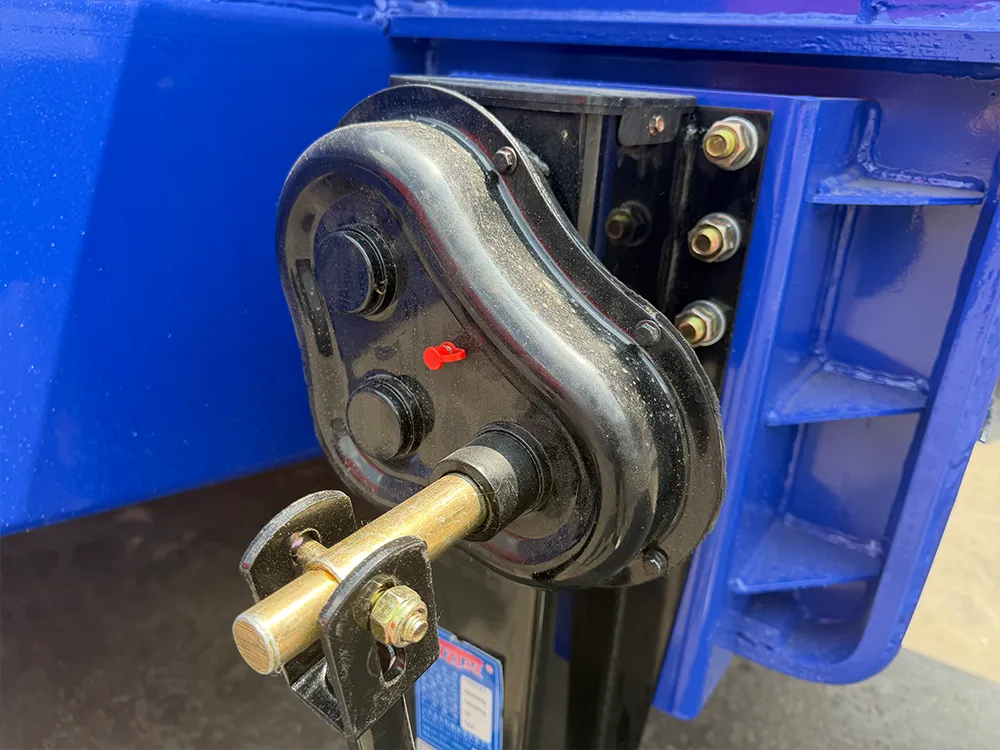

Landing Gear Crank Detail
Air Connection Panel

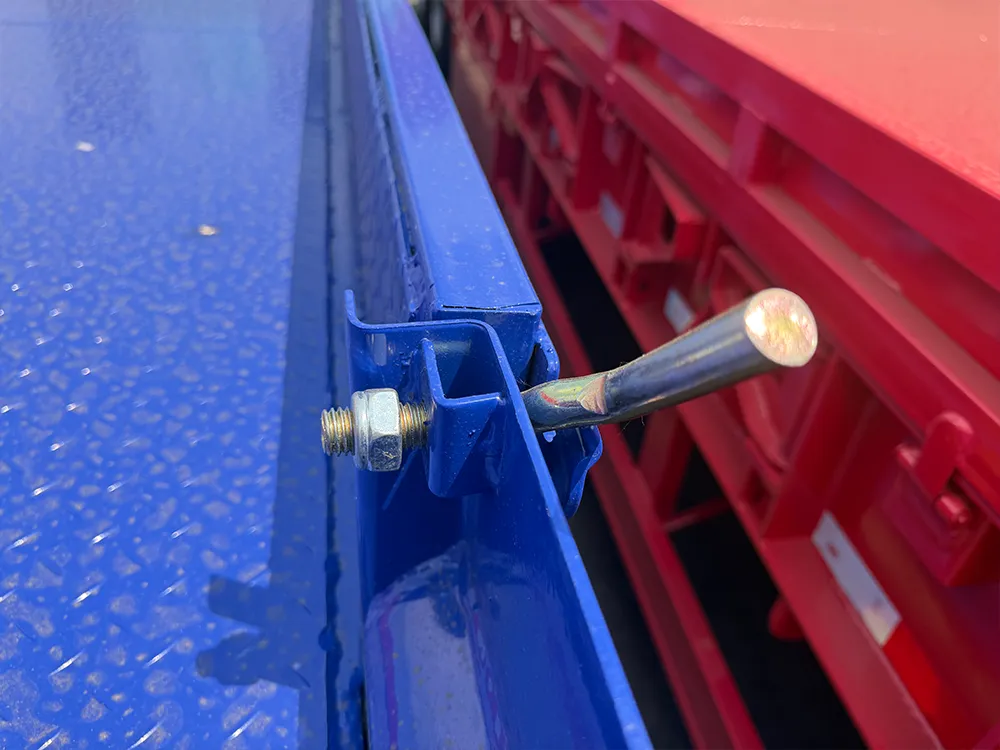

Side Lock Pin Detail

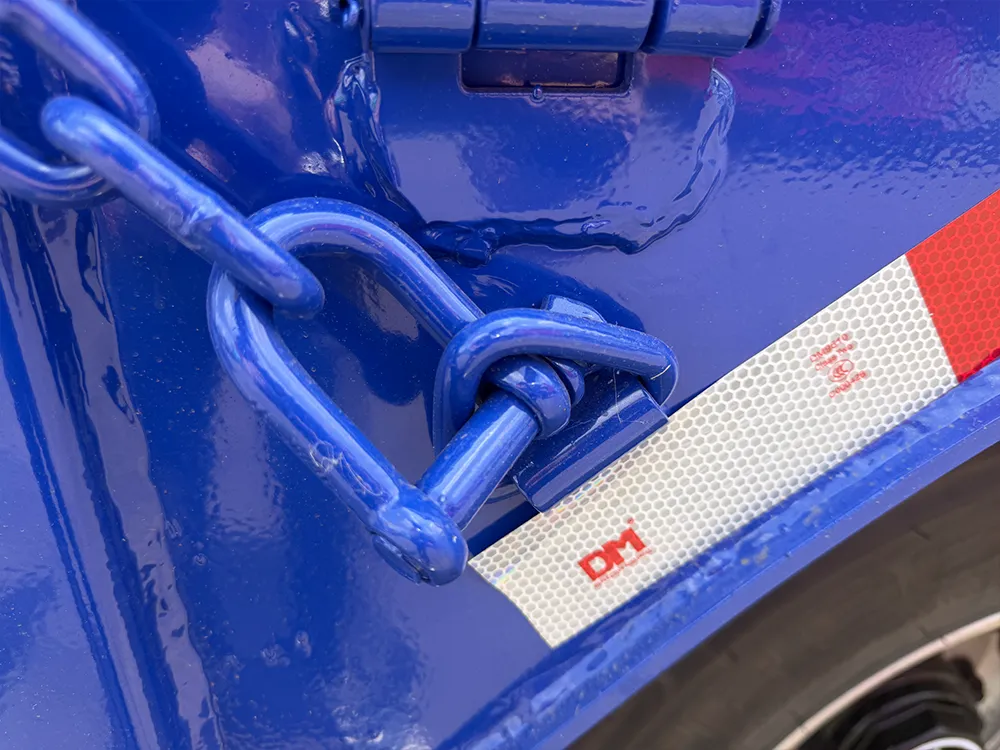

Chain Hook Detail
Equipped with a reliable mechanical suspension system and a heavy-duty 28T landing gear, this 3 Axle Blue Lowbed Semi Trailer guarantees superior durability, smooth load distribution, and stable parking support even on sloped ground. The dual-line air brake system delivers responsive and powerful stopping performance, significantly reducing braking distance and enhancing overall road safety, especially when carrying full-load cargo under adverse weather conditions. Additionally, the robust frame structure undergoes rigorous stress testing to ensure fatigue resistance and structural integrity over years of heavy-duty operation.
The trailer comes standard with 12 units of 12R22.5 tires mounted on 9.0-22.5 rims, ensuring excellent load-bearing capacity, reduced rolling resistance, and improved fuel efficiency for the towing vehicle. Loading and unloading operations are streamlined with your choice of either spring-assisted or hydraulic ramps, allowing for quick, safe, and labor-saving equipment deployment. The hydraulic ramp option, in particular, offers smooth angle adjustment for low-ground-clearance machinery, minimizing wear on tracks and tires during loading.
Specifically designed for the construction, agricultural, and mining sectors, this 3 Axle Blue Lowbed Semi Trailer is the definitive workhorse for heavy equipment transport. With its combination of high-strength materials, precision engineering, and user-centric features, this 3 Axle Blue Lowbed Semi Trailer not only maximizes productivity but also minimizes maintenance costs and downtime, ensuring your valuable machinery arrives safely, efficiently, and on schedule—every single time.
