7 Axle Lowbed Semi trailer
The 7 axle lowbed semi trailer represents a high-performance engineering solution designed specifically for heavy haulage operations. Its low platform design significantly reduces the overall loading height, allowing for the transport of tall equipment that would exceed standard flatbed height limitations.
This specialized trailer features a 16,000 × 3,000 × 1,700 mm external dimension in retracted mode, extending to 22,000 × 3,000 × 1,700 mm when fully extended. The effective load-bearing surface length ranges from 12,000mm (retracted) to 18,000mm (extended), providing maximum flexibility for various cargo types.
The trailer is constructed from high-strength 550mm I-beam steel, ensuring exceptional durability and load-bearing capacity. The 7-axle configuration with independent suspension provides excellent weight distribution and stability across long distances.
The hydraulic spring folding ladder features anti-slip texture for safe loading and unloading operations. This innovative design allows for efficient loading of tracked vehicles and heavy equipment while maintaining operational safety.
7 Axle Lowbed Semi trailer

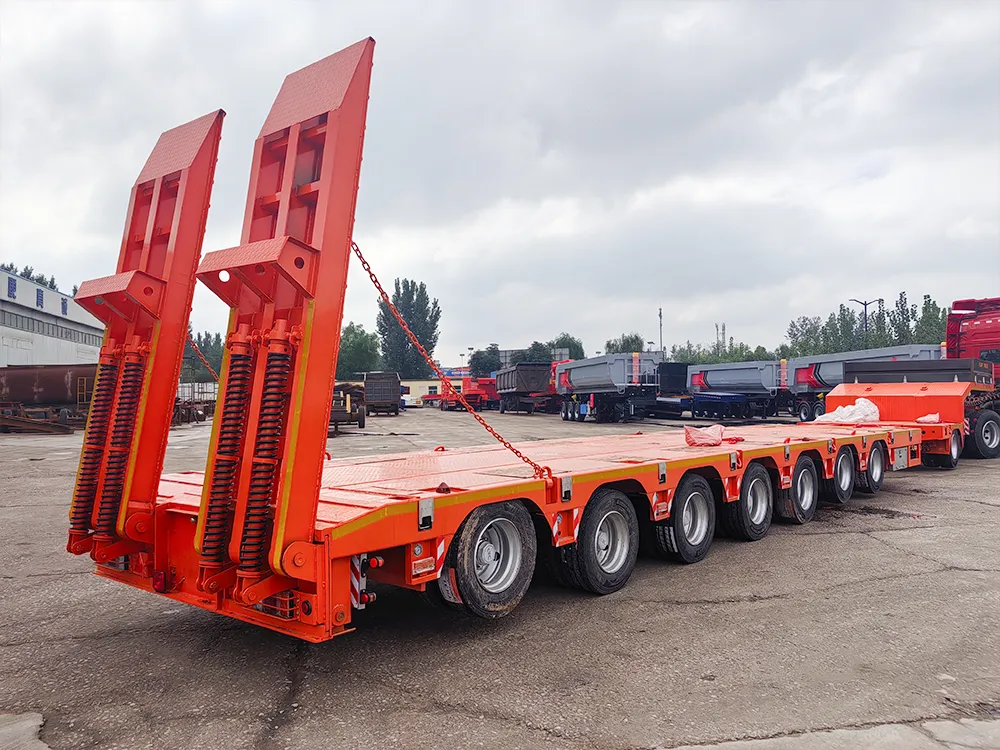

7 Axle Lowbed Semi trailer side view

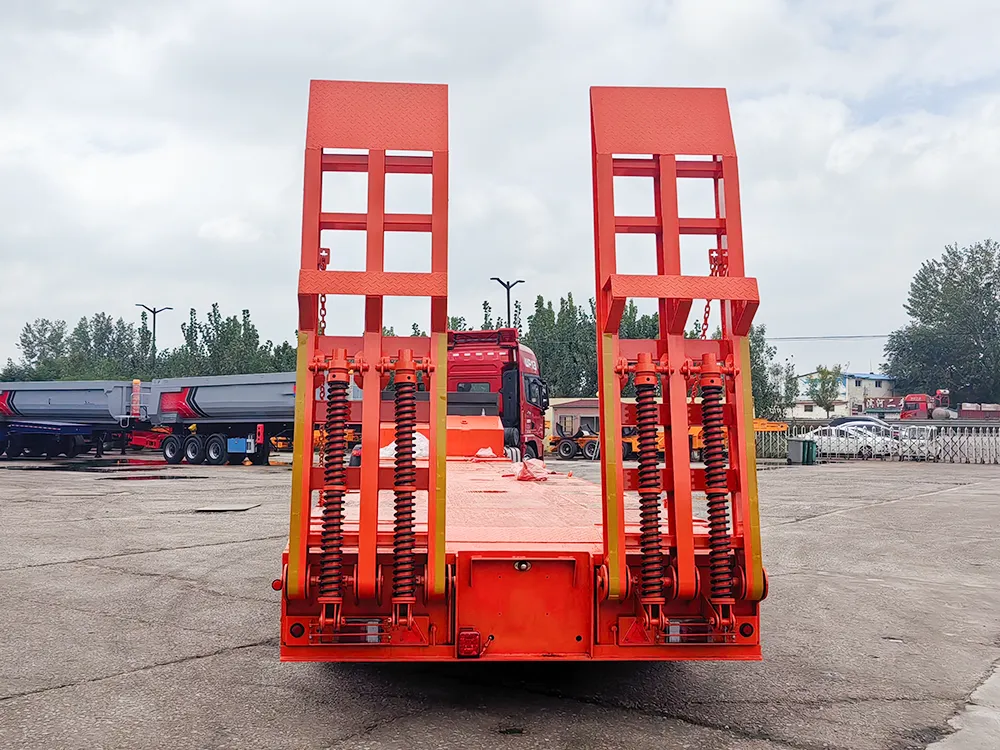

7 Axle Lowbed Semi trailer rear view

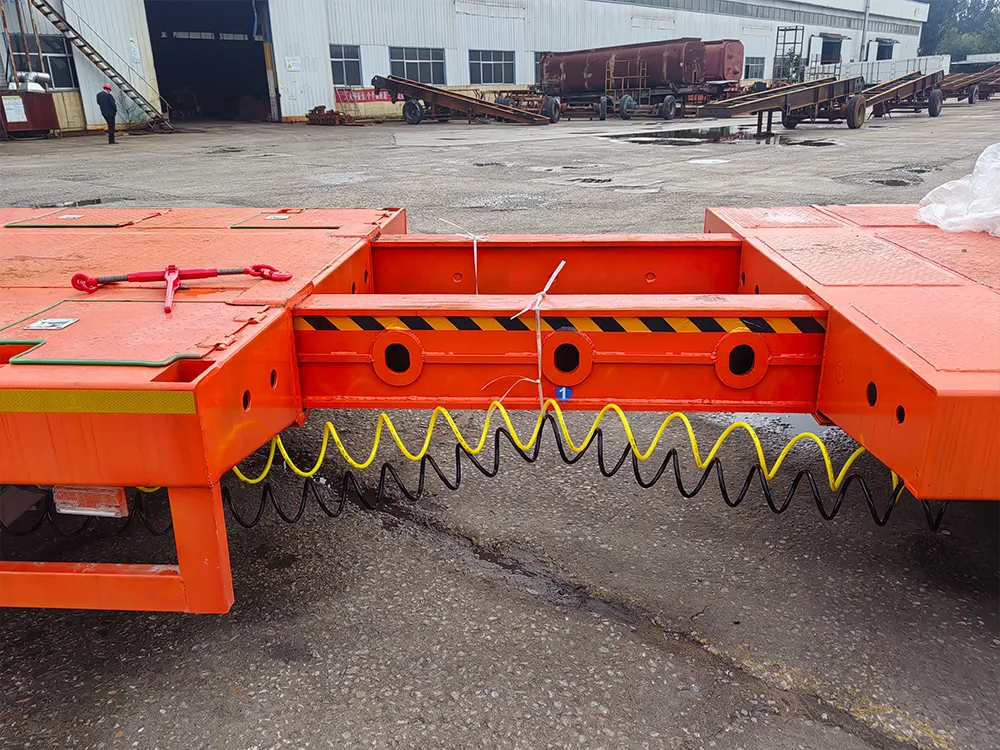

7 Axle Lowbed Semi trailer-Telescopic Connecting Beam
Recessed Lashing Point-Heavy-duty Lashing Ring
side view
All of our products are fully refurbished to meet international standards, and any parts can be customized by customer’s requests. With different configurations (suspension systems, tire options, and additional features), we have varying quotations for the 7 axle lowbed semi trailer.
In ZonHan, there will always be a solution that matches your operational requirements and budget constraints. Our technical team provides comprehensive support for customization and can assist with regulatory compliance documentation for your specific market.
Core Configuration: Equipped with 7 high-quality axles (Fuwa/BPW optional) and 28 pieces of 215/75R17.5 or 11R22.5 tires, ensuring even load distribution and smooth travel. The 7 axle lowbed semi trailer features a telescopic design with effective load-bearing surface length of 12,000-18,000mm and 3,000mm width.
Rugged and Durable: The main frame utilizes 550mm high-strength I-beam steel construction, providing excellent torsional and compressive resistance to withstand harsh full-load conditions during transportation. The surface treatment includes shot blasting, anti-rust primer, and protective coating for maximum corrosion protection.
Safety System: Standard configuration includes a dual-circuit air brake system with ABS and EBS for enhanced operational safety. The trailer features 800-1,000mm adjustable ground clearance and a hydraulic spring folding ladder with anti-slip texture for safe loading operations.
Versatile Application: The trailer can be customized with various features including telescopic hydraulic or mechanical pull-out systems, 800mm ladder width, and 3,500mm gooseneck length. It is designed to handle different oversized cargo types including construction machinery, wind power equipment, and industrial components, making it a versatile solution for heavy haulage operations worldwide.
