ZonHan 3-Axle Gooseneck Low Bed Semi Trailer: Professional Heavy-Duty Transport Solution
ZonHan tri-axle gooseneck low flatbed semi-trailer is a professional heavy-duty transport equipment for global markets, with a rated load capacity of 60-80 tons, which can efficiently transport large construction machinery such as excavators and bulldozers. The overall dimension is 13000×2550×2900mm, and the platform dimension is 9000×2500mm. The adjustable ground clearance of 850-1050mm balances loading convenience and driving stability.
The core of the frame adopts Q345B high-strength manganese steel main beam, with specifications of 14mm top flange + 8mm web + 16mm bottom flange, matched with 500mm spacing cross beams, featuring excellent torsion and bending resistance to withstand extreme heavy-duty working conditions. The suspension system offers two options: high-strength leaf spring and air suspension, paired with FUWA/BPW brand 3 axles and 12 pieces of 12.00R20 steel radial tires, ensuring driving reliability under complex road conditions.
In terms of safety configuration, the Gooseneck Low Bed Semi Trailer is equipped with a dual-circuit air brake system + ABS (EBS optional), 24V LED electrical system and 7-pin socket, meeting international transport regulations. The front hydraulic folding gooseneck ramp has a width of 800mm and a static load capacity of 15 tons. Combined with 28-ton JOST synchronized landing legs, equipment loading and unloading become more efficient and safer. The surface is treated with shot blasting + anti-rust primer + polyurethane top coat, which has strong corrosion resistance and adapts to harsh environments such as high temperature and heavy rain.
The standard configuration includes 20 rope tighteners, 2 tool boxes and 2 spare tire positions, fully meeting the needs of long-distance transportation. Whether for African mining projects or cross-border engineering logistics, this Gooseneck Low Bed Semi Trailer can become a reliable partner for customers’ heavy-duty transportation with stable performance and high cost performance.
Rear view of Tri-Axle Gooseneck Low Bed Semi -Trailer

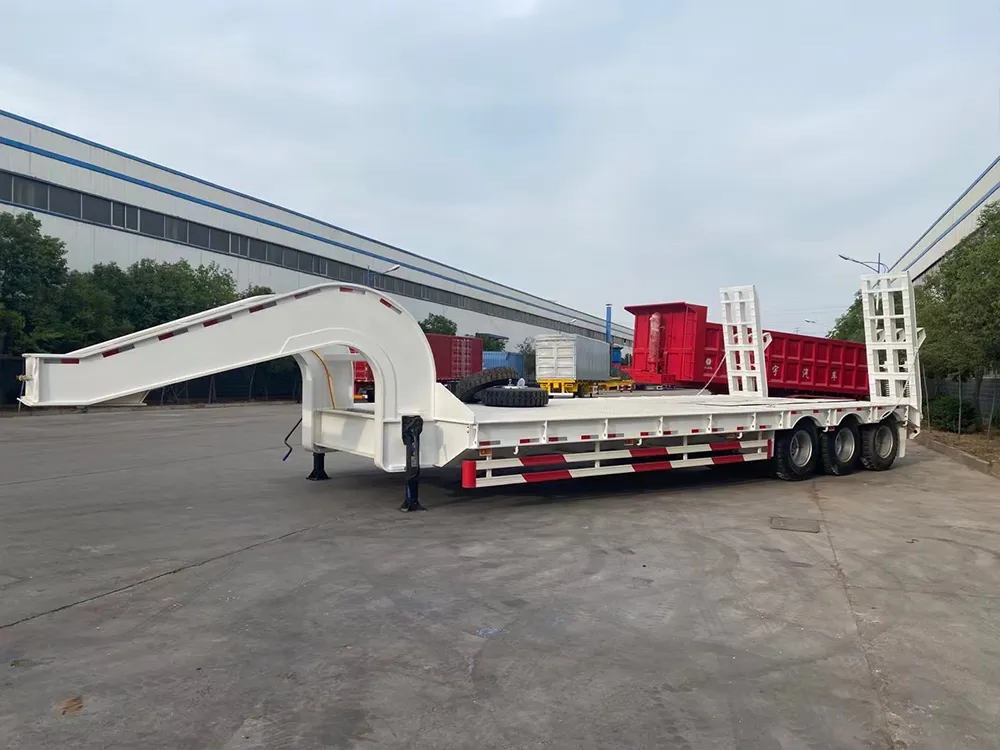

Side view of Tri-Axle Gooseneck Low Bed Semi -Trailer
Gooseneck Ramp
Landing Gear

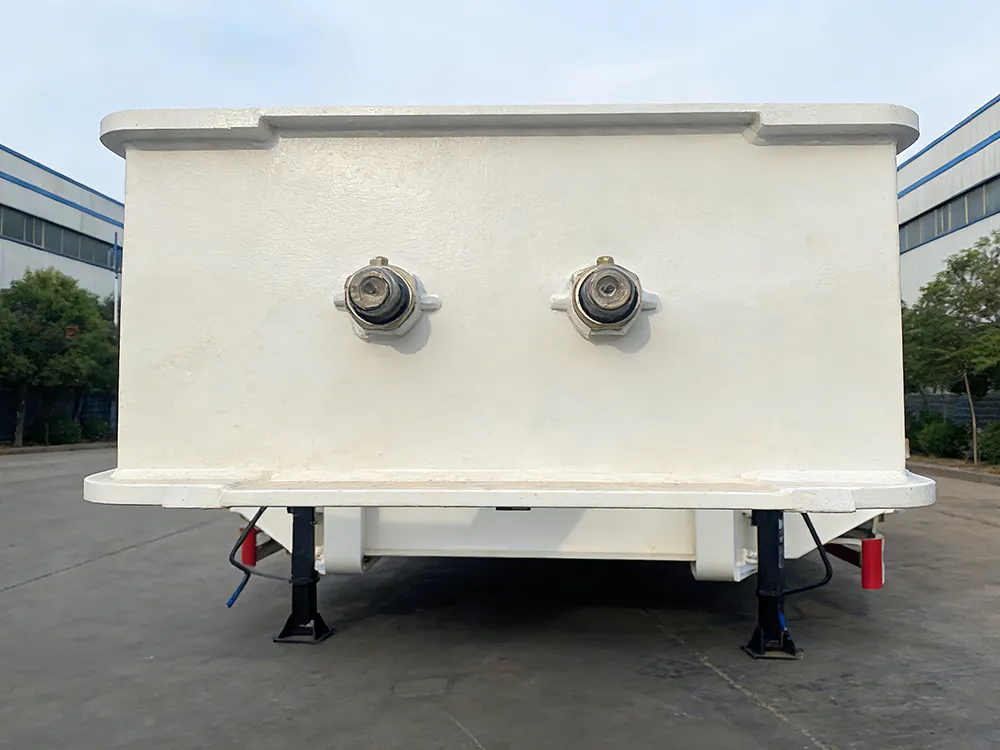

Pin Socket
