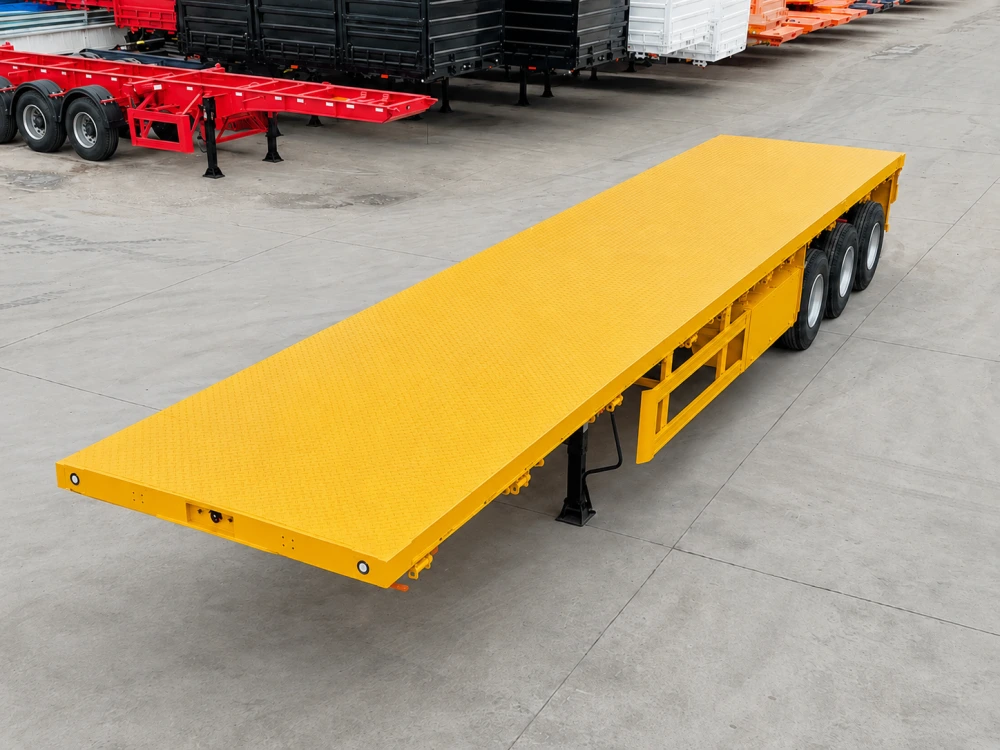

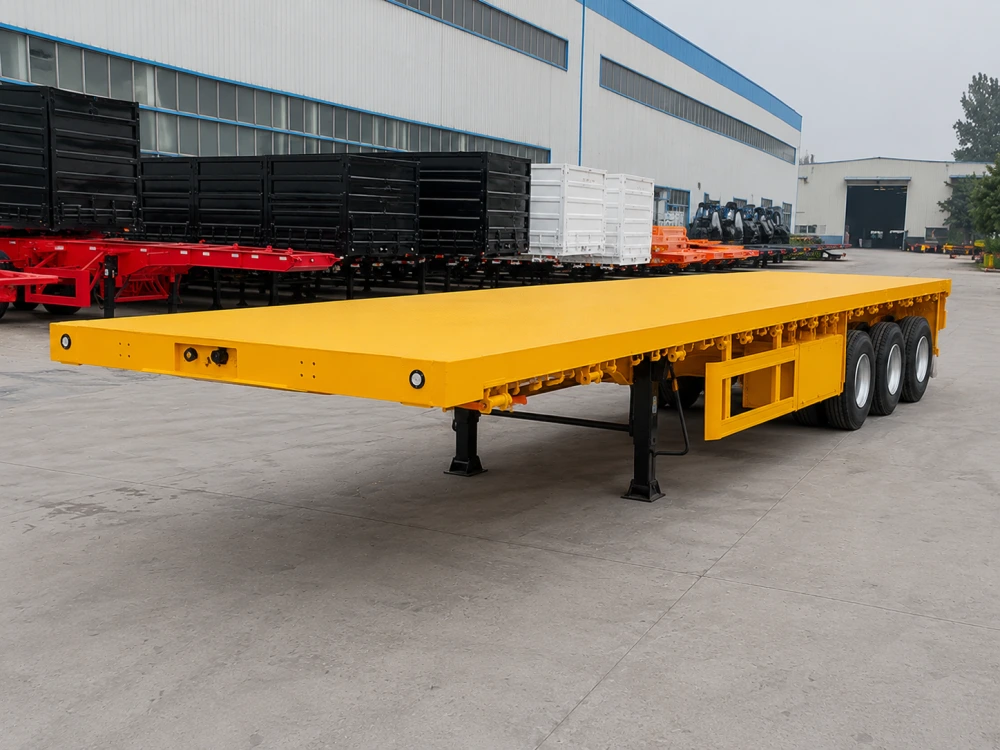

3 Axle 40ft Flatbed Semi Trailer
The three-axle flatbed semi-trailer is a mainstream workhorse for both domestic and international logistics. Featuring a fully enclosed flatbed load-carrying structure, it is highly versatile and suitable for transporting a wide range of cargo, including containers, steel products, construction machinery, and palletized goods. It is widely used in port transfers, long-haul line-haul logistics, transshipment of engineering equipment, and cross-border freight. Its core advantages include strong versatility, stable load capacity, and broad application scope.

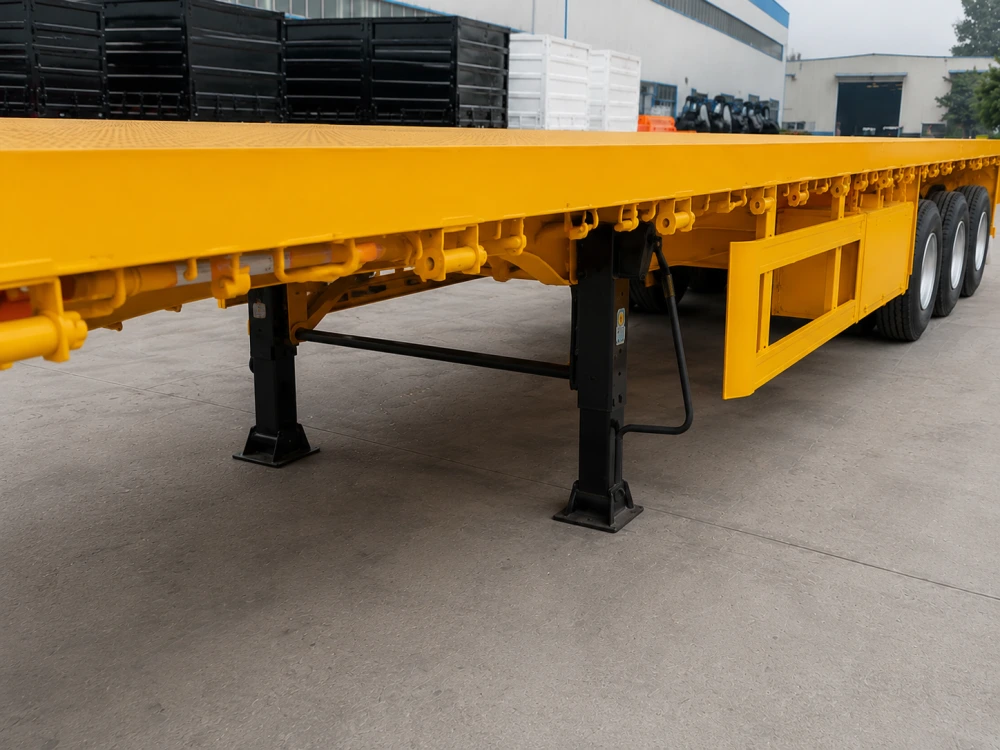

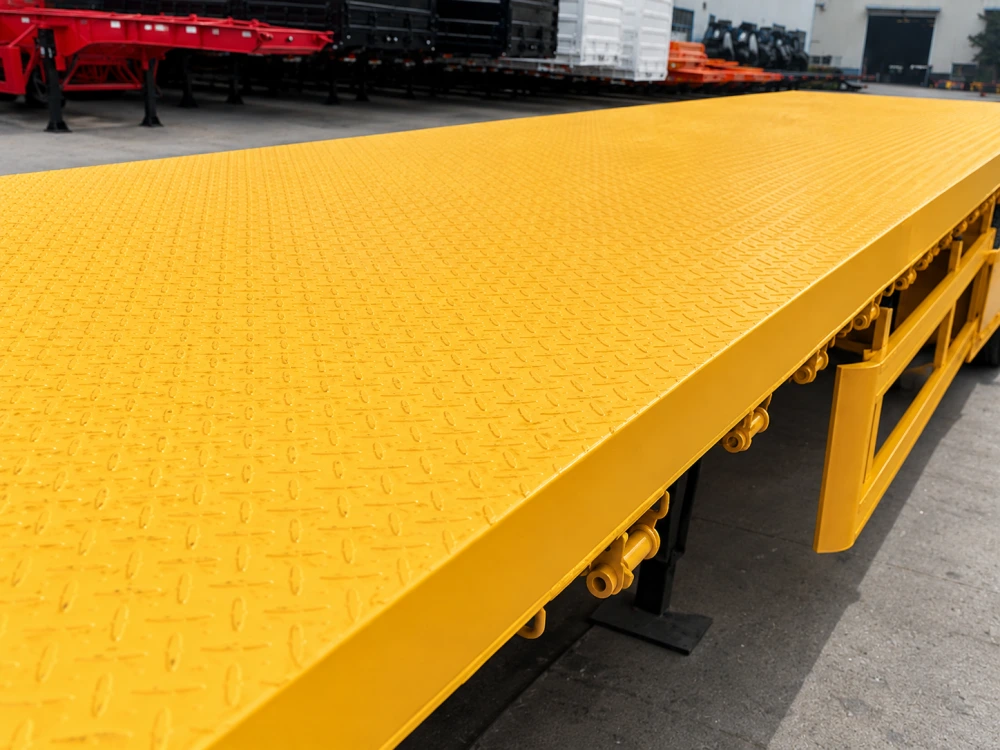

The the 3 Axle 40ft Flatbed Semi Trailer is made of high-strength checkered steel with full-slot welding, giving a flat, anti‑slip surface. Twist locks and lashing rings are evenly spaced around the perimeter to secure containers, pallets, and large equipment, preventing load shift during transport. The main beams are made of national standard high‑strength I‑beams or rectangular tubes, with robust welding that resists twisting and handles heavy loads with ease.
As for the running axle system, it comes standard with three heavy‑duty axles matched to national standard heavy‑load suspension, providing good shock absorption and a smooth ride even on rough roads. The tires of the 3 Axle 40ft Flatbed Semi Trailer are heavy‑duty radial tubeless ones with high load capacity, wear resistance, and durability—suitable for long highway hauls as well as unpaved surfaces.

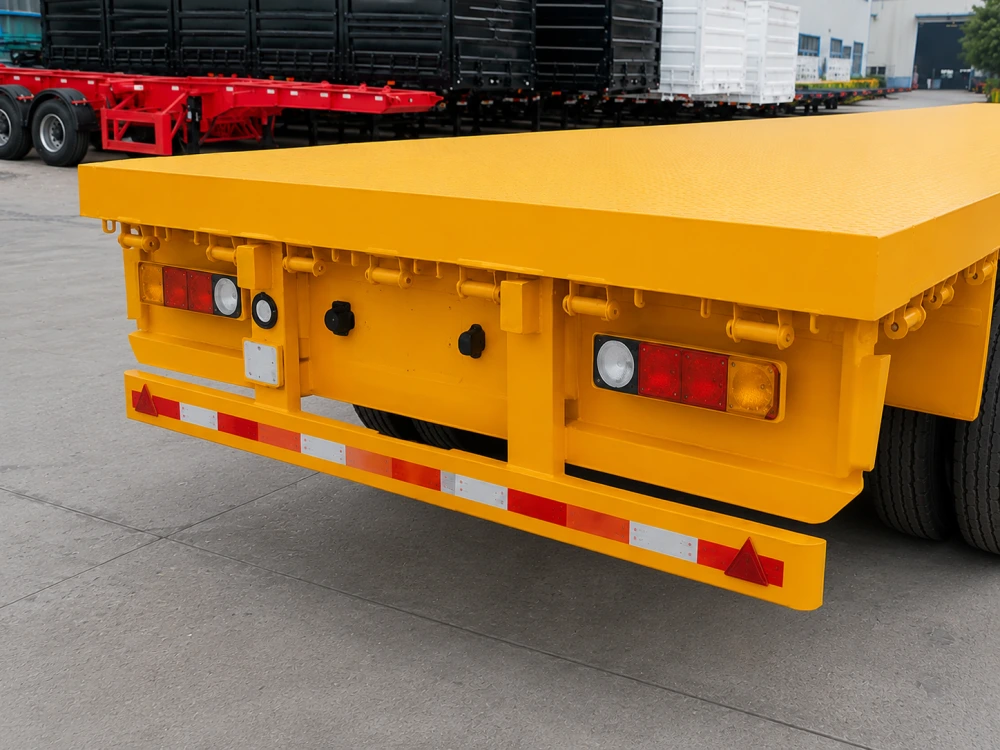

On the safety side, the rear end is fitted with brake lights, turn signals, clearance lights, and reflective markings that meet domestic and international road safety regulations. The 3 Axle 40ft Flatbed Semi Trailer is equipped with a standard air brake system and ABS anti‑lock braking for reliable stopping power. The kingpin, air lines, and electrical connections use internationally standard interfaces, so the trailer works with most tractor head brands.
Finally, the exterior coating uses industrial‑grade anti‑rust primer and a high‑gloss topcoat that stands up to rain, corrosion, and fading. Customers can choose from various colors such as yellow, black, or gray.
Standard technical specifications (industry-standard version, customizable as needed) include overall dimensions of 12,400 mm in length, 2,500 mm in width, and 1,550 mm in height, three axles, a rated load capacity of 40 tons (other weight variants available upon request based on regulations), capability to fit one 40‑ft container or two 20‑ft containers side by side, mechanical or optional air suspension, a dual‑line air brake system with ABS available, a 50# or 90# kingpin to international standard, and tubeless tires in 11R22.5 or 12R22.5.
Typical applications of the 3 Axle 40ft Flatbed Semi Trailer include container transfer operations at ports, docks, and logistics parks, long‑haul transport of steel, structural sections, pipes, and palletized general cargo on major routes, short‑distance relocation of small to medium‑sized construction machinery like excavators and wheel loaders, and cross‑border export freight where the trailer meets regulatory requirements in overseas markets such as Africa, Southeast Asia, and Central Asia.
Product advantages of the 3 Axle 40ft Flatbed Semi Trailer include strong versatility — one trailer handles containers, bulk cargo, and equipment, making for high utilization; a durable structure built from high‑strength steel that withstands rough roads and heavy loads, offering a long service life and low maintenance costs; full regulatory compliance with customizable dimensions, weight ratings, and certification options to meet different countries’ legal requirements for customs clearance and road use; and flexible delivery with support for custom colors, axle brands, suspension types, and load ratings to satisfy individual purchasing needs.
