3 Axle Black Side Dump Semi Trailer — Built for Africa’s Toughest Hauls
3 Axle Black Side Dump Semi Trailer is the ultimate solution for high-volume, high-frequency bulk cargo transport across Africa’s most demanding environments. From the red-earth mining roads of Zambia and the DRC to the construction corridors of Nigeria and Ethiopia, this trailer is purpose-built to perform where ordinary equipment fails.
Combining a heavy-duty welded steel body, a proven hydraulic tipping mechanism, and a 3-axle running gear, this trailer offers the right balance of payload capacity, unloading speed, and long-term durability that African operators demand.
Unlike rear-tipping trailers, a side dump semi trailer discharges cargo laterally — tilting the body sideways to release material rapidly along the full length of the trailer. This design offers several critical advantages: • Faster unloading: The entire load is released in seconds, reducing turnaround time per cycle. • Greater stability during tipping: The lower center of gravity compared to rear dumpers reduces the risk of tipping over on uneven ground. • Versatile discharge locations: Material can be deposited alongside roads, in ditches, or along embankments — ideal for road-building and site-grading operations. • Reduced ground pressure point: Cargo is spread over a wider area during discharge, beneficial for soft or sandy terrain common across Africa.
Heavy-Duty Steel Body Construction The body of the 3 axle black side dump semi trailer is fabricated from high-tensile structural steel with reinforced cross-members and perimeter stiffeners. The exterior panels are fitted with heavy-gauge ribs and gussets that resist deformation under repeated loading of rocks, ore, gravel, sand, and construction debris. Key structural highlights: • High-tensile steel side walls — resist denting and cracking under impact loads • Reinforced floor plate — designed for heavy, concentrated loads such as wet sand and large ore chunks • Full-length roof tarpaulin system — keeps bulk cargo contained during transit, preventing spillage and dust pollution • Yellow safety stripe along the lower chassis — improves visibility during night operations

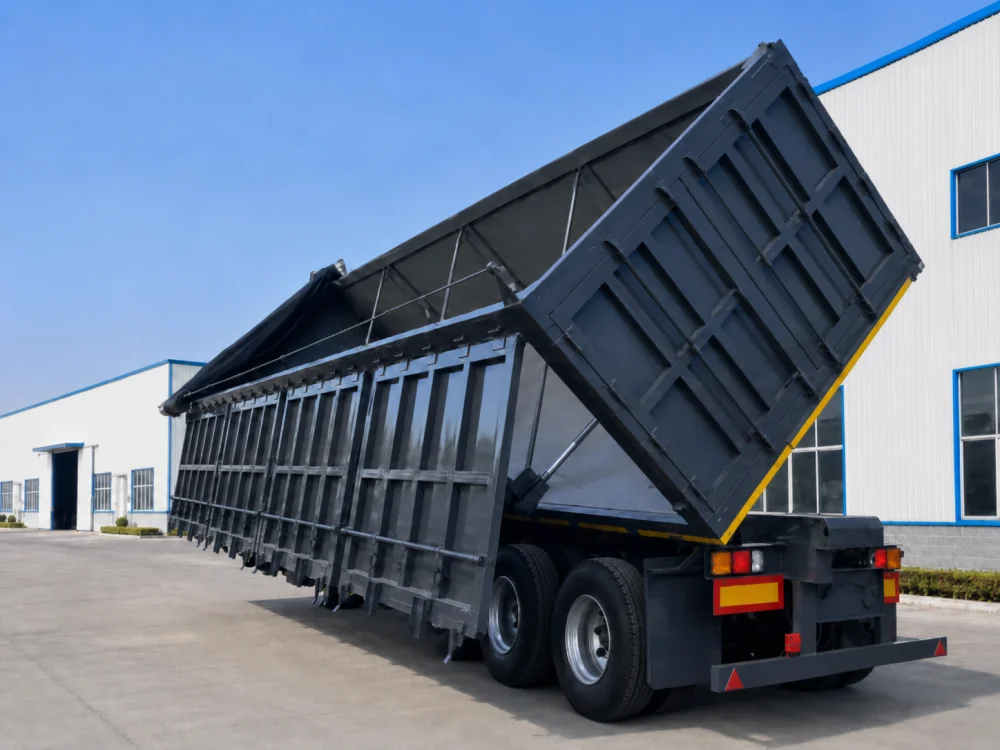

Unloading Diagram

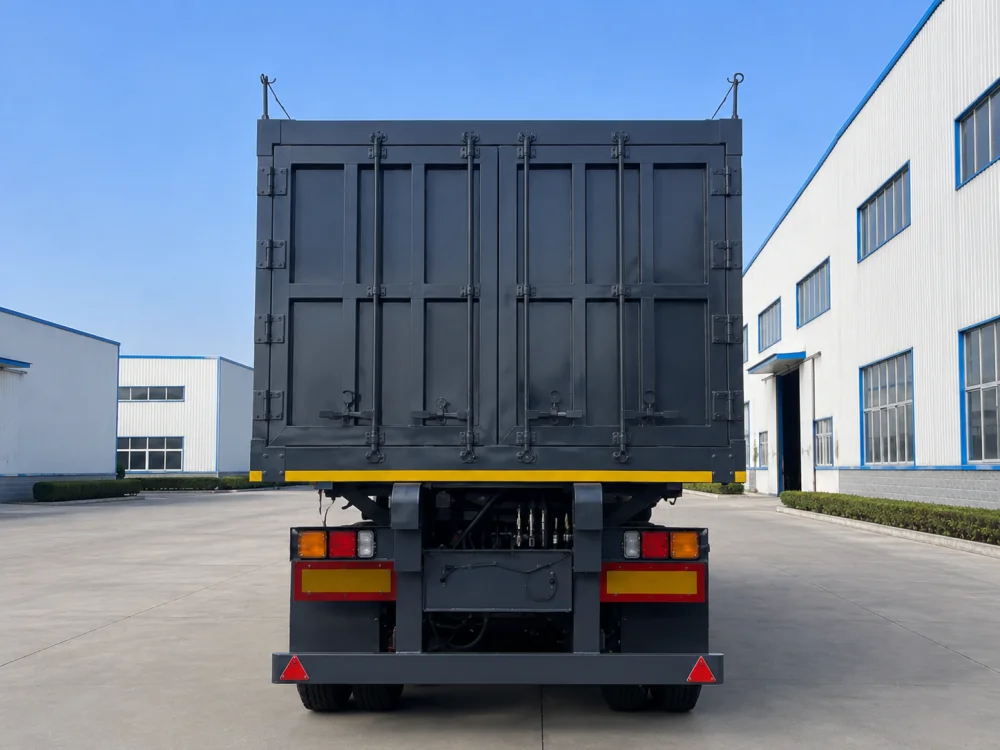

Rear View
Hydraulic Power View

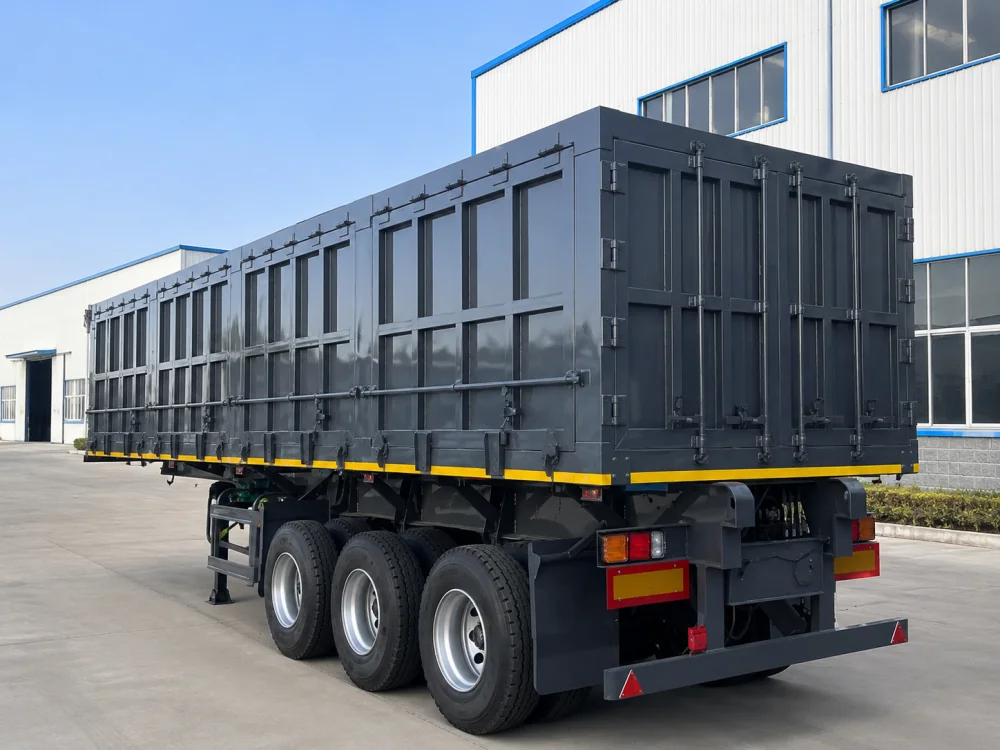

Rear-side view

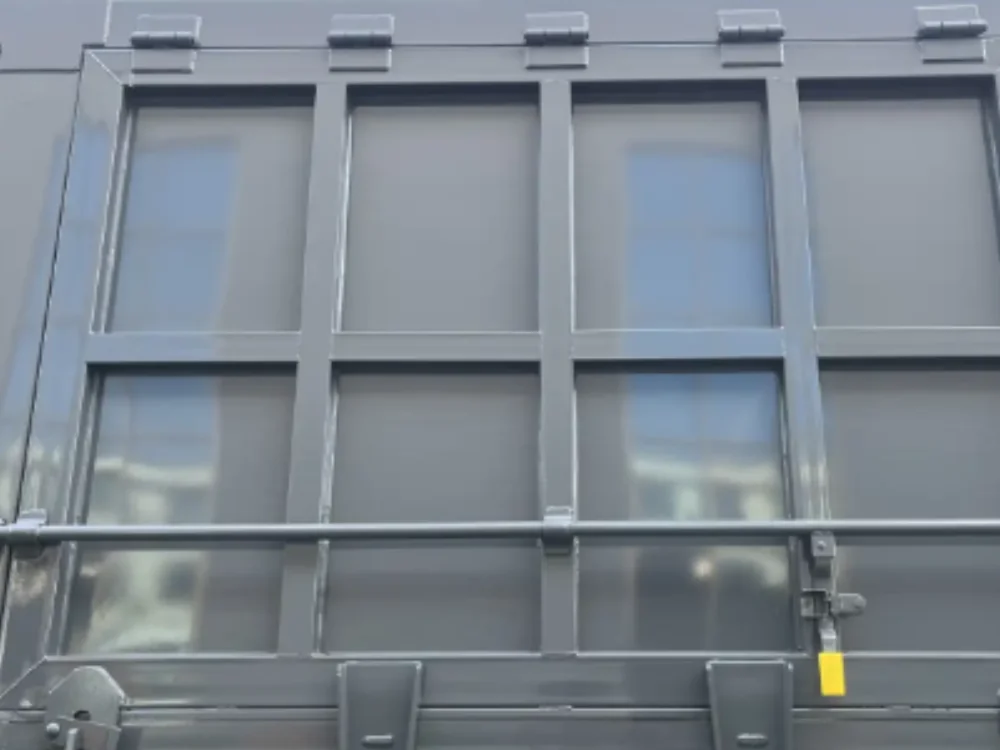

Detail photo

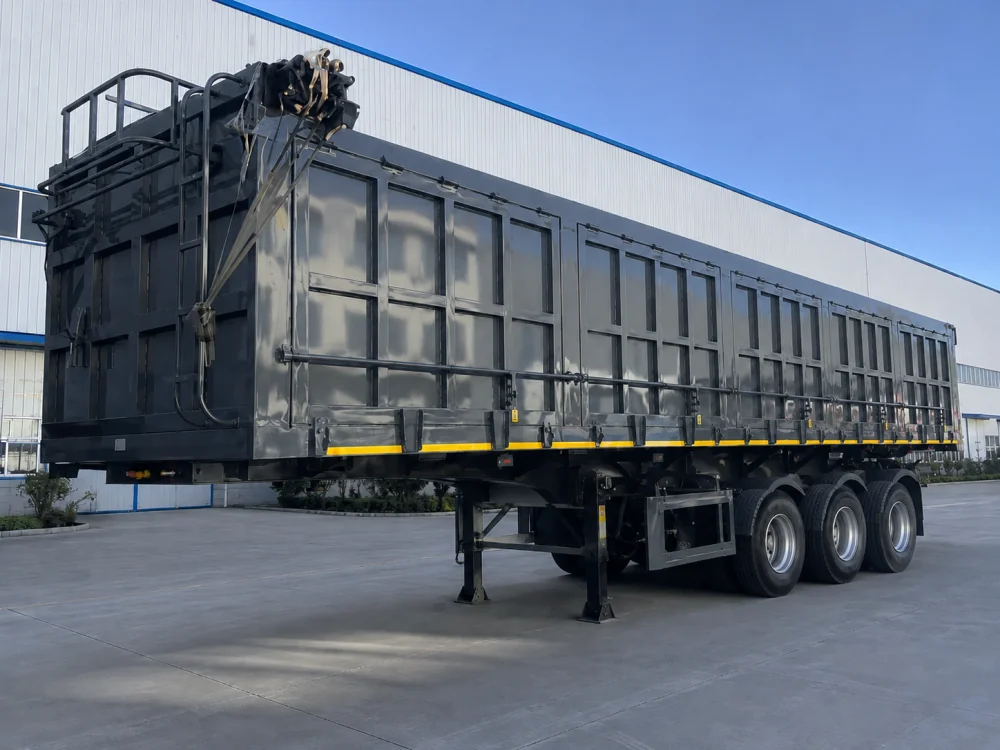

Front View

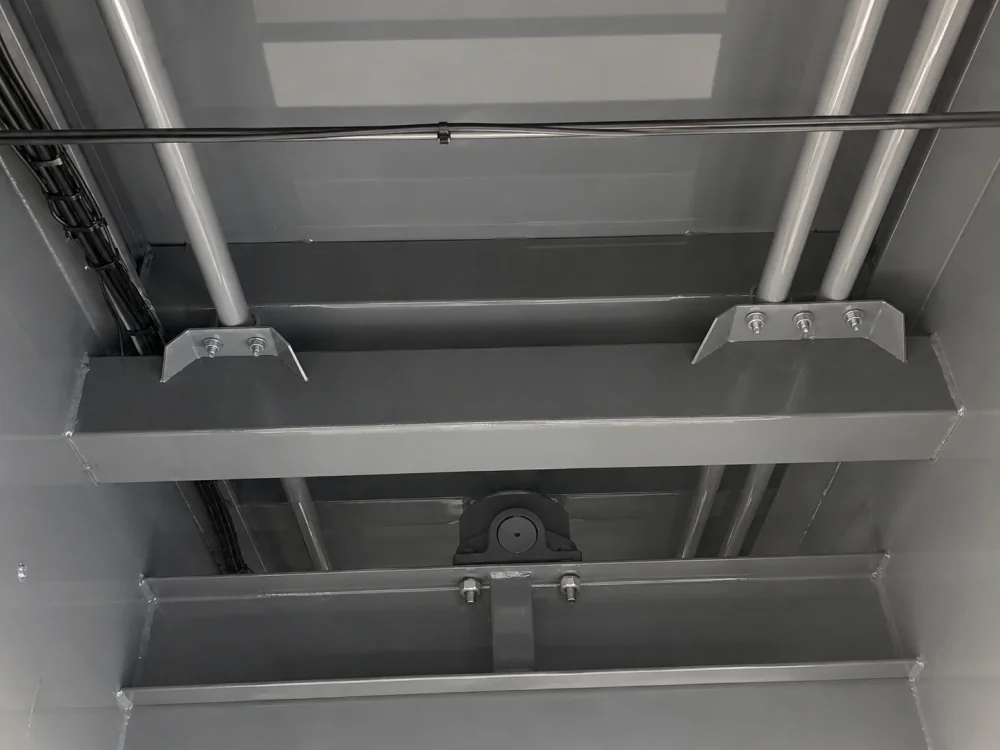

View of the Cargo Container
At the heart of this trailer is a multi-stage hydraulic cylinder system that delivers smooth, controlled side-tipping action. The hydraulic pump is driven by the tractor’s PTO (power take-off), ensuring reliable power transfer under all load conditions.
Multi-stage hydraulic cylinder for full lateral body lift
High-pressure hydraulic hoses with protective sheathing against abrasion and heat
Centralized hydraulic control valve block — easily accessible for maintenance and inspection
Safety locking mechanism — prevents accidental body drop during maintenance or transit
The entire hydraulic layout is visible from the rear of the trailer (as shown in the product images), with organized valve manifolds, neatly routed hose bundles, and easily serviceable components — an important feature for operators in regions where specialized technicians may not always be available.
3 Axle Suspension & Running Gear
The 3 axle configuration distributes the gross vehicle weight across a wider footprint, reducing road damage and meeting the axle-load regulations enforced in many African countries, including South Africa (C-scheme), Kenya, and Tanzania.
3 heavy-duty axles with drum brakes
Air suspension system — absorbs road shock and protects cargo integrity on rough terrain
Wide-base tubeless tires — reduce rolling resistance and improve load-bearing on gravel and laterite roads
Landing gear — heavy-duty retractable support legs for stable parking and coupling
The 3 axle black side dump semi trailer is widely used across multiple sectors throughout Sub-Saharan and East Africa:
Mining operations — transport of ore, coal, and overburden material
Road construction — delivery and distribution of crushed stone, sand, and asphalt base material
Agriculture — bulk grain, fertilizer, and produce transport
Municipal infrastructure — soil removal, landfill operations, and pipeline trench backfilling
Port logistics — bulk commodity movement from port yards to inland storage
